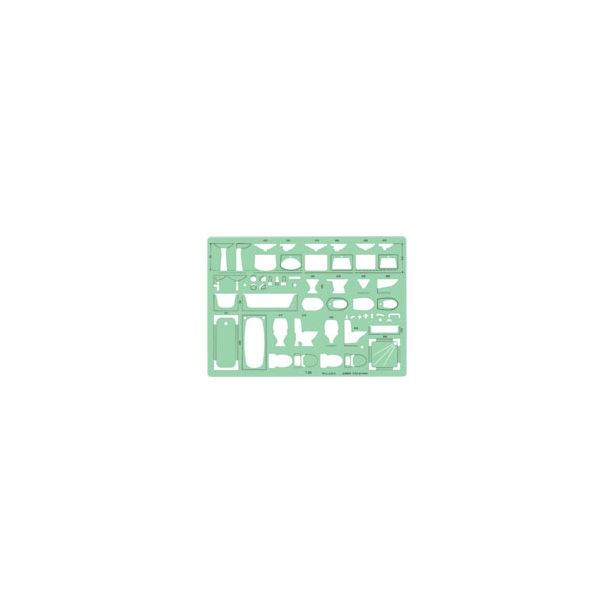

Plumbing Fixture Templates
Perfect for the precise plumber who plots pristine plans, this plumbing fixture template makes any plan simple to understand and clearer than ever before. Comes in a compact size for easy usage and storage.
- Contains a wide range of modern sanitary appliances such as a Combination closet, Lavatory, Bidet, Shower and Bath.
- Is visible in elevation and plan view.
- Edges: Ink bossed.
- Pen: 0.35mm
- Scale: From 1:20 - 1:50 - 1:100
- Material: 1mm transparent green-tinted butyrate.
Perfect for the precise plumber who plots pristine plans, this plumbing fixture template makes any plan simple to understand and clearer than ever before. Comes in a compact size for easy usage and storage.
